KANGAL TR4




OVERVIEW



  • Police lighting, sirens, and controls

  • PA intercom system

  • In-country GPS navigation

  • Red / white interior lights

  • Integrated fire suppression systems

  • Second battery with battery isolator and battery switch

  • Ram bumpers

  • Explosive resistant fuel tank



SPECIFICATIONS




ENGINE AND FUEL

ENGINE : 6.7L Turbocharged Diesel

POWER : 400Hp @ 2800 RPM

TOURQUE : 1085 Nm @ 1600 RPM

POWER TO WEIGHT RATIO : {PWR} 44.5 HP/TON

FUEL TANK CAPACITY : 257 Liter (Diesel

DRIVE RANGE : 800km

ELECTRIC SYSTEM : 24v

EMMISSIONS LIMIT : Euro 3

TWO YELLOW OPTIMA BATTERIES

HEAVY DUTY ALTERNATOR

PROTECTION

Crew Compartment : CEN Level B6

One Piece ABC Pillar Up to B7 Level Armor

One Piece Roof and Floor up to B7 Level Armor

One Piece Firewall up to B7 Level Armor

One Piece Door Design up to B7 Level Armor

WEIGHT

CURB WEIGHT : 7870kg

PAYLOAD CAPACITY : Up to 1100kg

COMBAT WEIGHT : 8970Kg

INTERIOR VOLUME

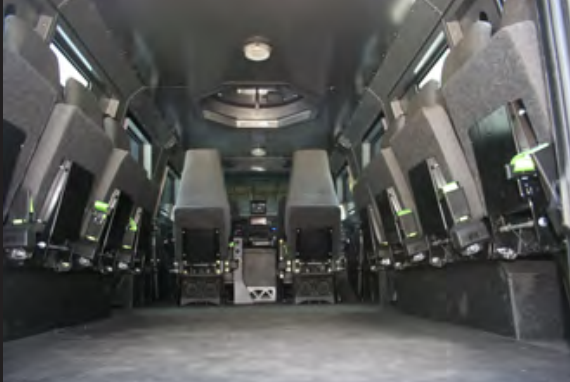

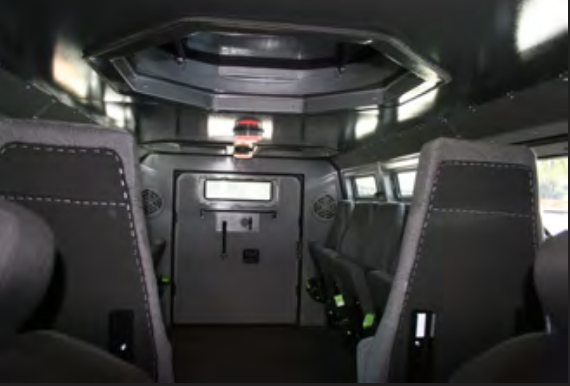

Crew Compartment (Armored) whole interior : 11.9sqm

Interior Behind the two front seats : 9.3sqm

DRIVELINE/SUSPENSIONS/AXELS/CHASSIS

GEARBOX : OEM 6-Speed Automatic, Electronically Controlled

TRANSFER CASE : 4x4

BRAKES : Discs ABC, 5.1 Brake Fluid and Upgraded Brake Line

FRONT AND REAR AXELS : Rigid Live Axels

FRONT AND REAR SUSPENSION : Coil/Leaf and Shock Absorbers

STEERING : Power-Assisted

DIFFERENTIAL : Operated Locks

FOX UPGRADE : Full Suspension Package

CHASSIS : Armored Cab Mounted on Frame

PERFORMANCE

MAX SPEED : 120 km/h*

GRADIENT : 60%

SIDE SLOPE : 35%

APPROACH ANGLE : 65° *

DEPARTURE ANGLE : 38° *

TURNING CIRCLE WALL-TO-WALL : 10

MAX-WADING DEPTH : 0.7m

HEIGHT OF VERTICAL WALL : 0.4m

MINIMUM STEADY SPEED : 2.5 Km/h

12000 BTU AIR CONDITIONER

*Performance Data May Vary From Vehicle Chassis

DIMENSIONS

LENGTH : 266” (6756mm)

HEIGHT : 101” (2565mm)

WIDTH : 96” (2438mm)

WHEELBASE : 161” (4089mm)

TRACK : 93.9”(2386mm)

GR CLEARANCE : 20 0”

SEATS : 12 = 2 + 10



STANDARD FEATURES




EXTERIOR FEATURES

5 Ton Winch

Heavy Duty Door Handles and Load-Bearing Hinges (see more about our hinges here)

PA and Siren / Front and Read Blue and Red LED Lights

Rear Back Up Cameras

EMERGENCY

FIRE : Extinguishers, Engine Fire Suppression

FIRST AID : First Aid Kit

ESCAPE : Roof Escape Hatch

TOWING : Front Winch and T Hook

LIGHTS

Standard Light System and Roof Search

Roof Search GO Lights

Power Operable Projector Lights

TIRES

TIRES : Cross Country Off-Road

MILITARY SPEC : Run-Flat Hutchinson Rims
